BUILT IN THE UNITED KINGDOM
Designed and built with British manufacturing in the United Kingdom, the GWA24 uses precision cabinet geometry, low-turbulence porting and robust internal bracing to keep distortion low at show levels.
SUBTRIX · Subwoofers

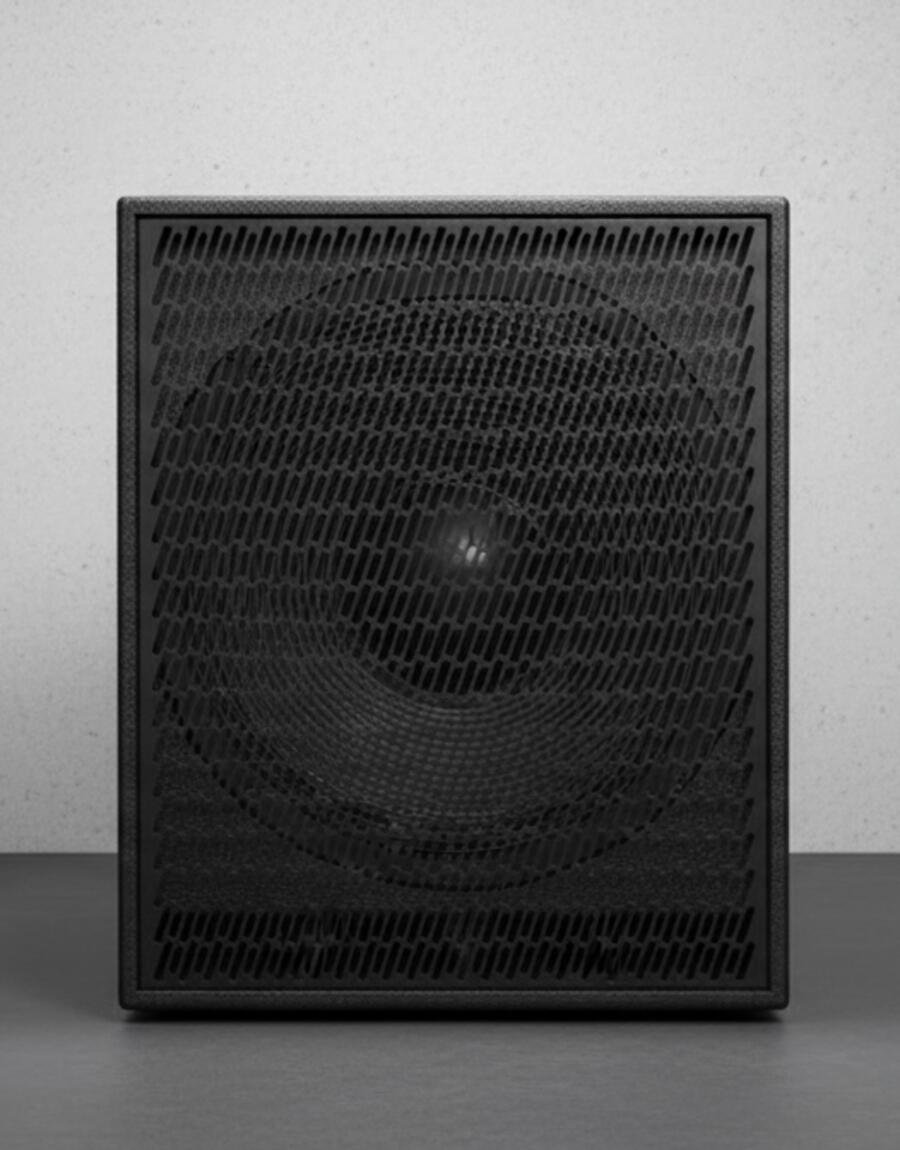

GWA24
A 24-inch reflex sub-bass system delivering very high SPL with deep, controlled extension for modern portable systems.
SUBTRIX ENGINEERING
BUILT FOR DEEP CONTROL
Ligwa Pro Audio launches the SUBTRIX range of reflex sub-bass enclosures with the GWA24 as its first model. It combines high output, deep extension and controlled performance in a practical professional format.
- Low-turbulence reflex porting
- Precision cabinet geometry
- Robust internal bracing
- Custom 24-inch neodymium driver
- Six-inch voice coil
- Single or scalable deployment
Technical data
- Model
- SUBTRIX GWA24
- Type
- Reflex sub-bass
- Driver
- 24 in / 610 mm
- Nominal impedance
- 4 Ω
- Voice coil diameter
- 6 in
- Continuous power rating
- 3,000 W
- Power (AES)
- 1,500 W
- Frequency range (-10 dB)
- 22 Hz–200 Hz
- Frequency response (±3 dB)
- 26 Hz–180 Hz
- Fb (box tuning)
- 29 Hz
- Max SPL calc.
- 142 dB @ 1 m
- Magnet type
- Neodymium
- Input connectors
- 2 × Neutrik NL4
- Dimensions
- 800 × 673 × 733 mm / 31 1/2 × 26 1/2 × 28 7/8 in (H × W × D)
- Net weight
- 54 kg
DESIGNED AS A COMPLETE SYSTEM
Purpose-built loudspeaker design, amplification and processing work together for dependable performance from input to output.
INTEGRATED SYSTEM
SUBTRIX cabinets pair with SUBTRIX amplifiers and LIGTRIX DSP units to create an integrated, tuned solution from input to output.
CUSTOM DRIVER
Drawing on decades of professional audio experience, LIGWA developed a custom line of low-frequency drivers for reliability and consistency across the SUBTRIX reflex range.
PROFESSIONAL APPLICATIONS
READY TO SCALE
Applications include portable and rental productions, live venues, club installations and mobile events.
The footprint supports single or scalable deployment with practical mobility.
Components and construction are specified without compromise, while pricing remains realistic for professionals and serious enthusiasts.

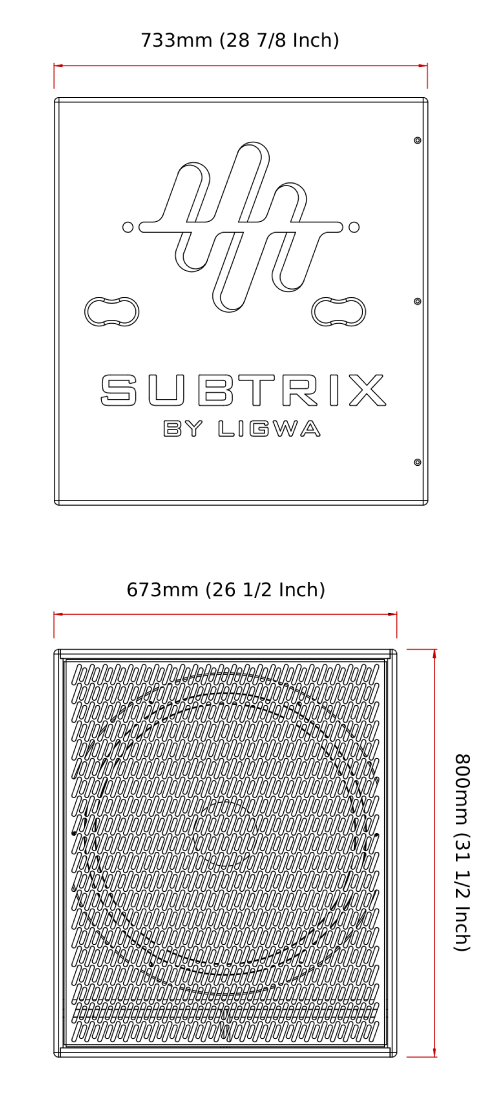

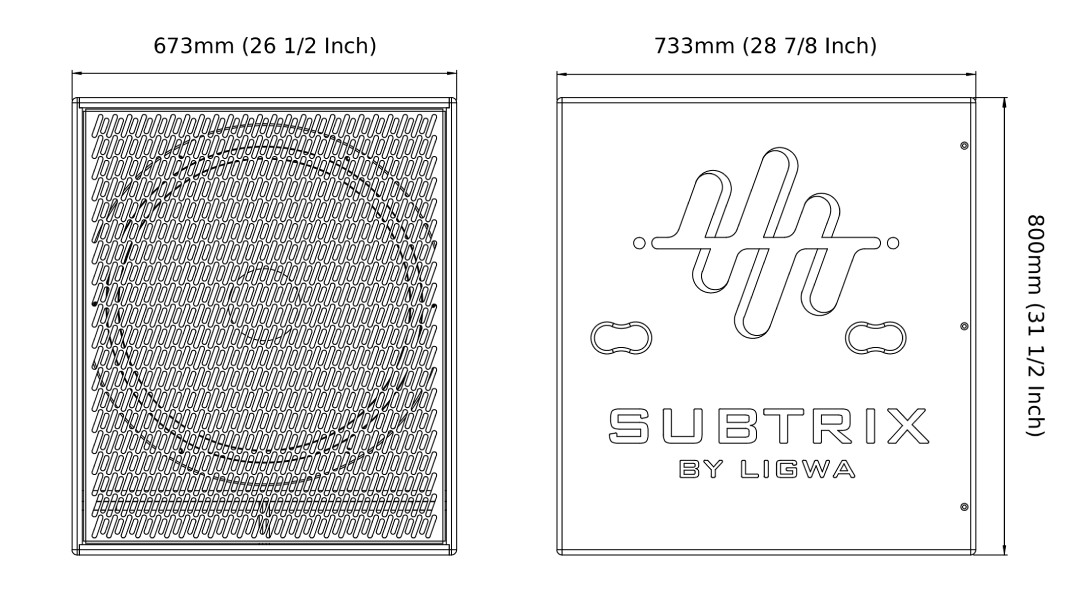

Contact Us for details and demonstrationsOutline dimensions
DIMENSIONS
Outline drawings for system planning, transport and installation.
